Architectural Overview

Volume Tracking process is fundamentally an asynchronous process that does not block client threads. Upon the triggers (run creation, library creation/updates, etc.), the underlying process runs and reaches an eventual completion persisting the records in MultiLIMS Warehouse.

Note

The asynchrony of the process has been achieved by using an intermediary RabbitMQ queuing system. The queuing system has publishers and consumers that produce volume tracking messages to the queue, and consume and send to persist the messages respectively. The queuing system is also referred to as the "broker" as it is the broker within the system that manages certain aspects like message delivery.

Components Involved

  • traction-service: A Ruby-on-Rails application that exposes a REST API for long read LIMS1. This is the primary backend for Traction.
  • tol-lab-share: This is the consumer application for the queueing system (although might not be the only consumer)3.
  • MultiLIMS Warehouse2: A relational database that contains warehoused data. The table aliquot records volume tracking messages.
  • RedPanda Schema Registry: A schema registry to store the schemas used in the messaging process.

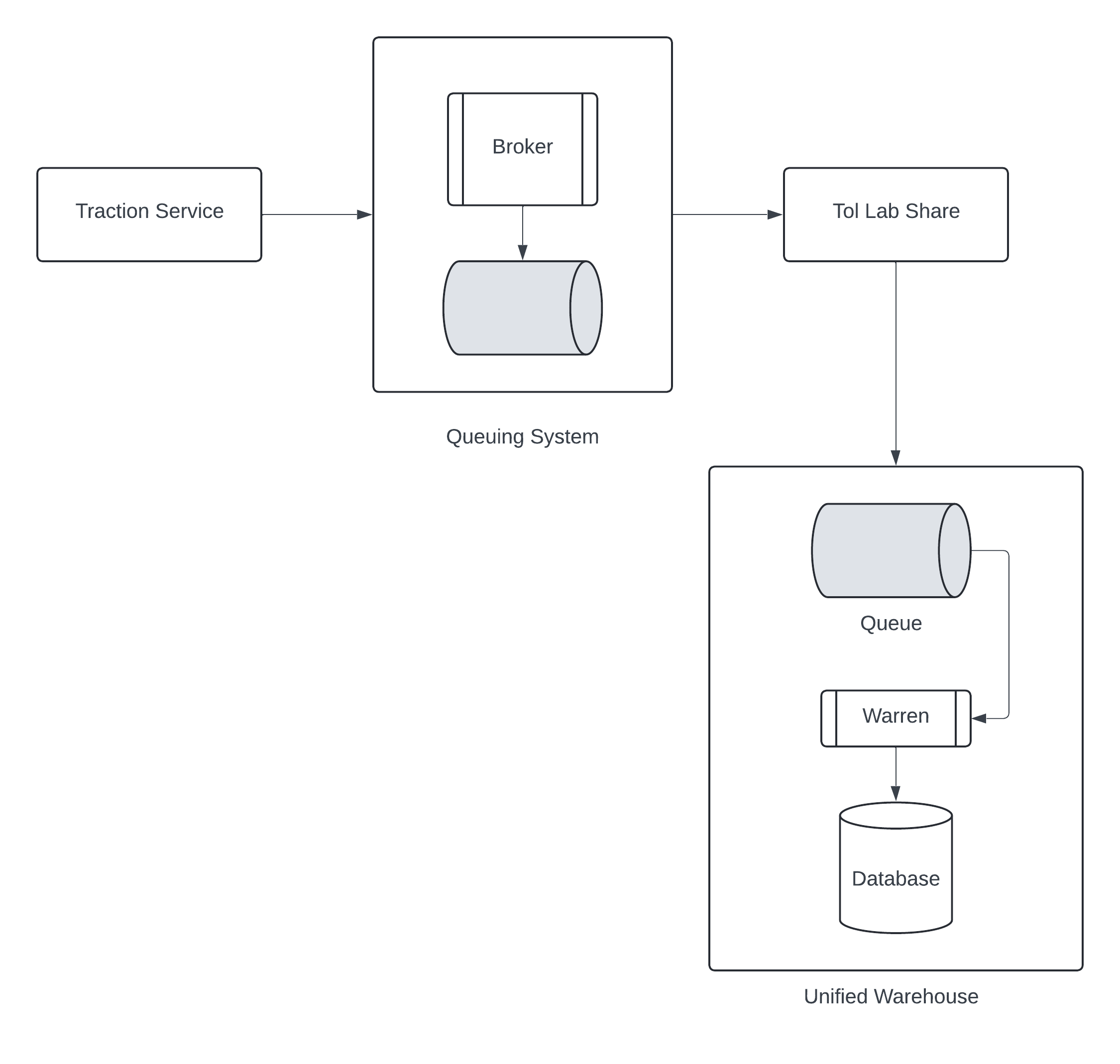

Simplified Architecture
Simplified Architecture

MultiLIMS Warehouse

The warehouse can either by accessed by traditional SQL connections, or using the setup put forth by unified_warehouse. For volume tracking, we use unified_warehouse which itself is a Ruby on Rails project. unified_warehouse associates itself with a queue hosted at ware-uat.sanger.ac.uk, and another Ruby client Warren that shovels messages coming into the associated queue of unified_warehouse.

The messages that needs to be sent to the warehouse database need to be sent to the associated queue psd.mlwh.multi-lims-warehouse-consumer in a specific format, via an exchange that binds to that queue. For volume tracking purposes, a new binding has been created to the queue with the exchange psd.tol-lab-share. The routing keys for this queue are as follows:

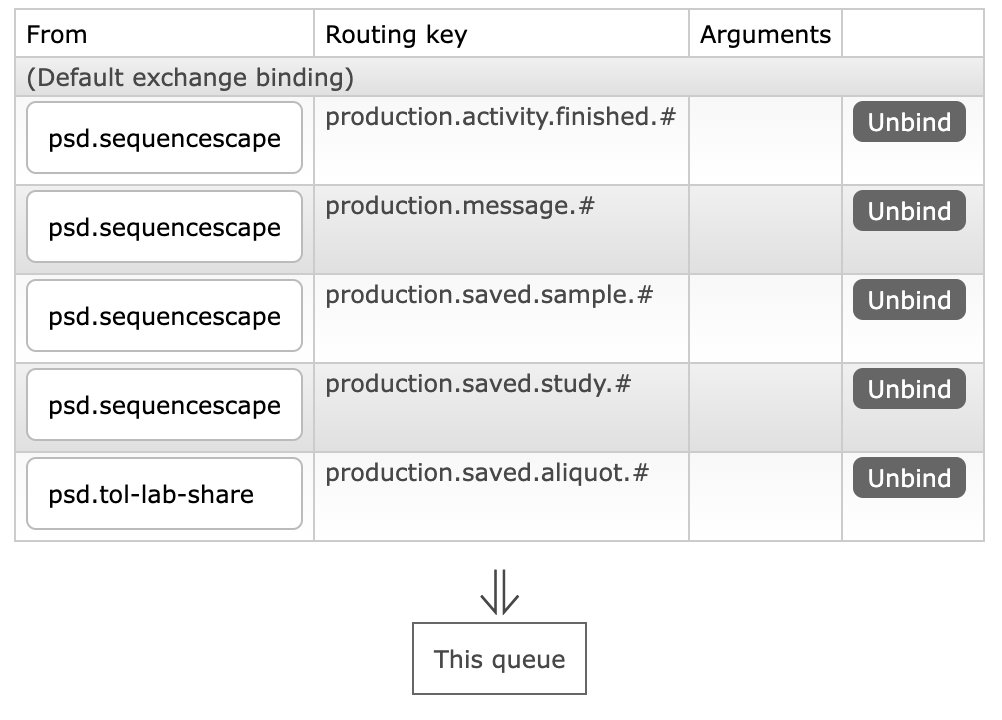

Queue Bindings
Queue Bindings

Note that the binding <environment-name>.saved.aliquot.# is used for volume tracking.

Info

Many of our systems have queues set up for async communication. For example traction-service has its own queue for shoveling automated manifest messages to the warehouse queue.

To query aliquots, please use SQL syntax described as follows:

SELECT <columns> from mlwhwarehouse WHERE <criteria>;

Please follow the Querying section for some custom queries for querying the MultiLIMS Warehouse.

Tol Lab Share

tol-lab-share does not have an API exposed to access the application. It is a queue consumer that establishes a set of AMQP connections with the given queues and consumes messages from them. For each kind of message (for example, volume tracking, bioscan, etc.), a processor exists to process the incoming messages from the queue. In terms of volume tracking, the processor is located at tol_lab_share/processors/create_aliquot_processor.py. The processor does the following:

  1. Receives incoming messages from the queue.
  2. Validates the incoming message using the schema registry.
  3. Synthesises from the contents of the incoming message the aliquot that needs to be created in the warehouse.
  4. Creates the message that needs to be sent to the warehouse queue.
  5. Publishes the message to the warehouse queue.
  6. Log properly each step in the process.
Info

All the connection logic, validation and most of connection-specific error handling are encapsulated in the library lab-share-lib. This library is imported to tol-lab-share, and activities such as establishing AMQP connections and schema validations are handled by this library.

One of the most important criteria of message processing is handling errors (e.g. erroneous/invalid messages). They are gracefully handled by tol-lab-share.

Question

What would happen if the message processing fails?

Eventual failures are dead-lettered. There is a setup for dead letter exchanges (dlx) and the queues that are bound to those exchanges (dlq) that are persistent. Messages that were dead lettered can be retrieved from these queues and investigated.

As explained in a previous section, tol-lab-share publishes messages to the warehouse queue. This is done by using the associated queue and the related configurations discussed in previous sections. The overall sequence and detailed error mitigation procedures involving tol-lab-share is embedded below (to open it in Lucid chart you might need specific access).

Traction Service

The entities laid out for volume tracking in traction-service are given below:

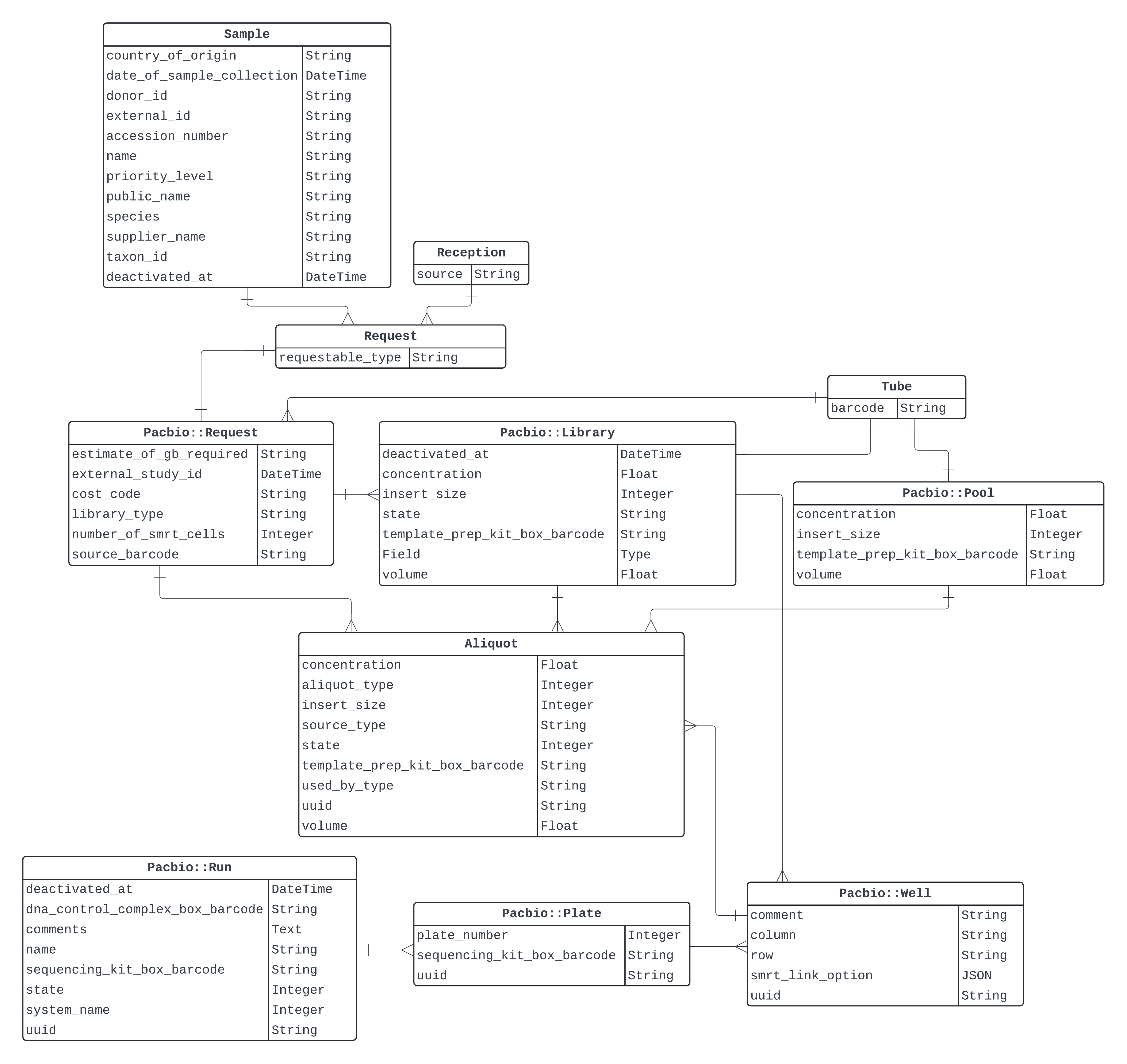

ERD
Entities used for Volume Tracking in Traction

Note that this does not display all the entities used in traction-service. It displays only the important entities used for volume tracking and the relationships between them.

  1. This is one of the "producers" for the queuing system. This is the producer the volume tracking system uses. ↩

  2. The data can be viewed either by a LIMS application that connects to the warehouse or a MySQL client. ↩

  3. A Python application that does not expose an API. It is mere a consumer that acks (or rejects) messages coming from the queue. ↩
