Process flow of Volume Tracking

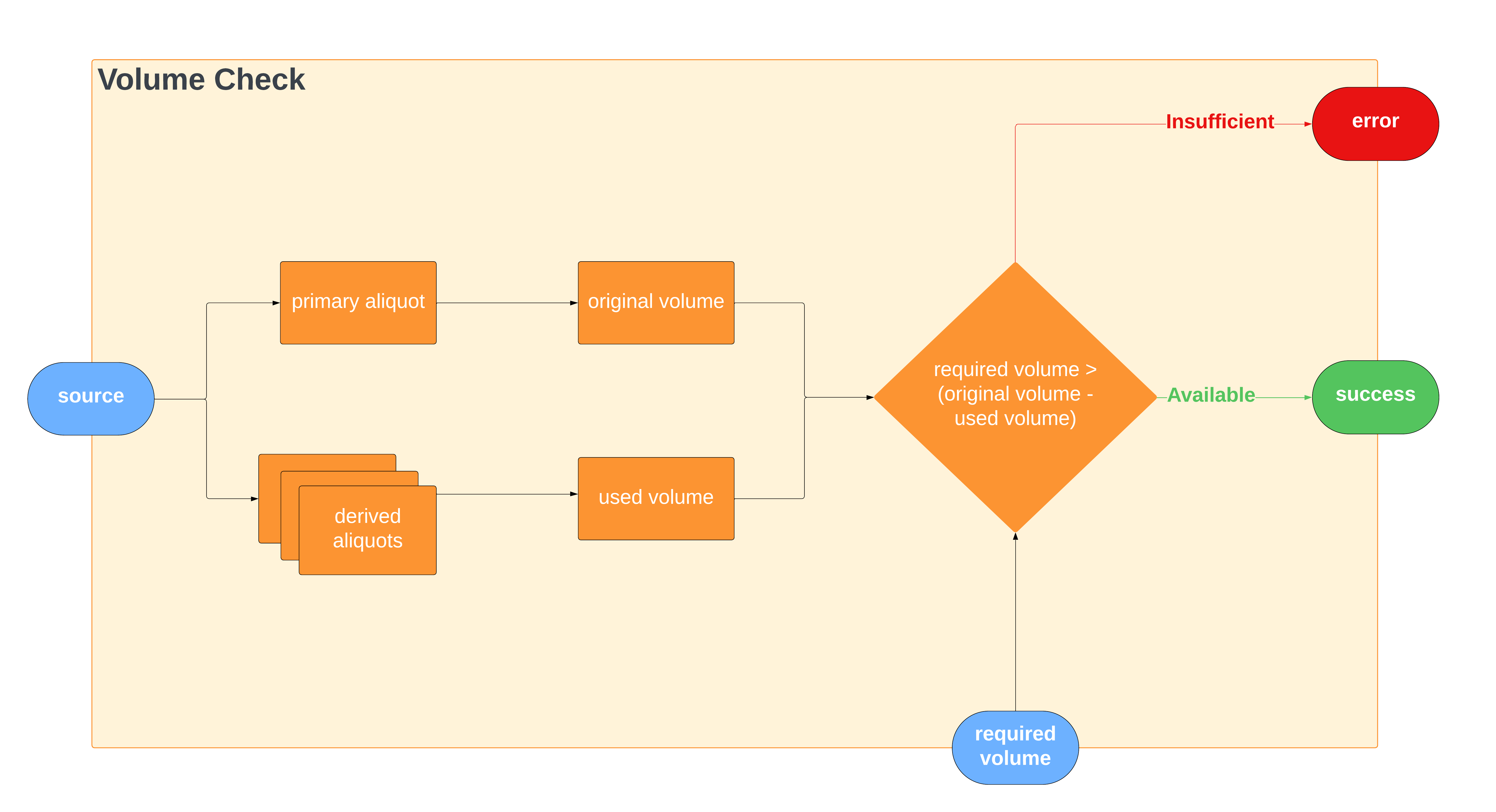

In a nutshell, Volume Tracking is the process of tracking down volume of each aliquot created from the sample, and discern whether there is enough sample volume available for further sequencing. Therefore, we need to track and record the initial volume of the sample, and the volume of each aliquot created from the corresponding sample. Consider the diagram below.

Info

We record the initial volume of a sample in these scenarios:

1. Creating a library
2. Creating a pool

When we are using a library or a pool in a run, we are recording the used volume of each library or pool in a run, as well as the libraries that are used in a pool within a run.

As mentioned above, the entire volume tracking process depends on the following concept:

\[ V_{required} < V_{original} - V_{used} \]

The volume checking process involves primary aliquots that record the original volume of a library/pool or a run, and the summation of all the derived aliquots that are required. If the required volume is higher than the available volume, the volume check fails.

Libraries

Assume that a library is created with a volume and concentration. The system then records this event by persisting a record in aliquot table with aliquot_type equal to primary and source_type equal to library along with the volume and concentration.

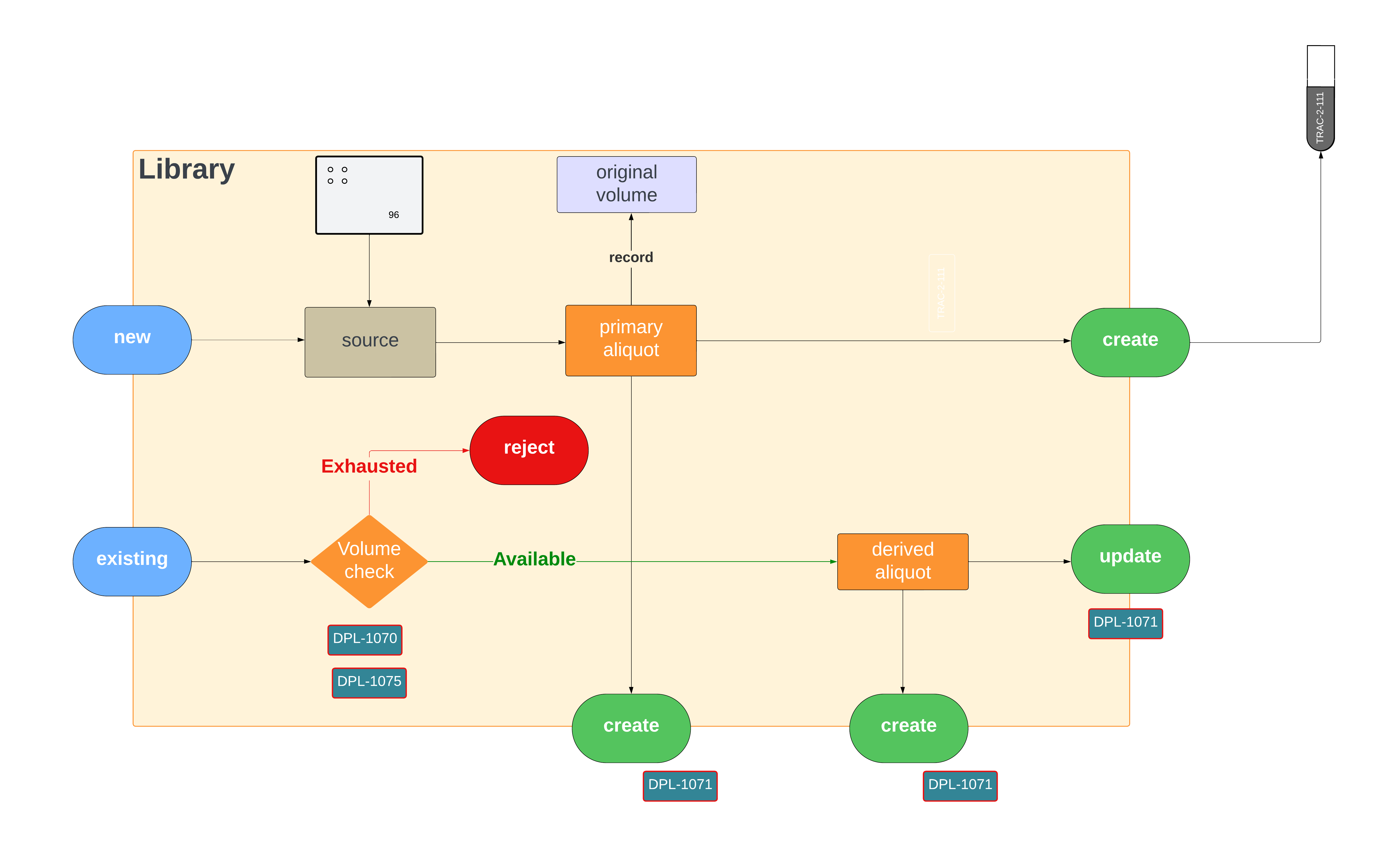

The process diagram for the above use-case is depicted below.

Pools

When creating a pool, a primary aliquot is created with source_type equal to PacBio::Pool. A Pool can be created using multiple libraries as well multiple requests. Derived aliquots are created for each library or request used in a pool. But we are only sending aliquots created by the library (we are not sending aliquots created by the request) to the warehouse.

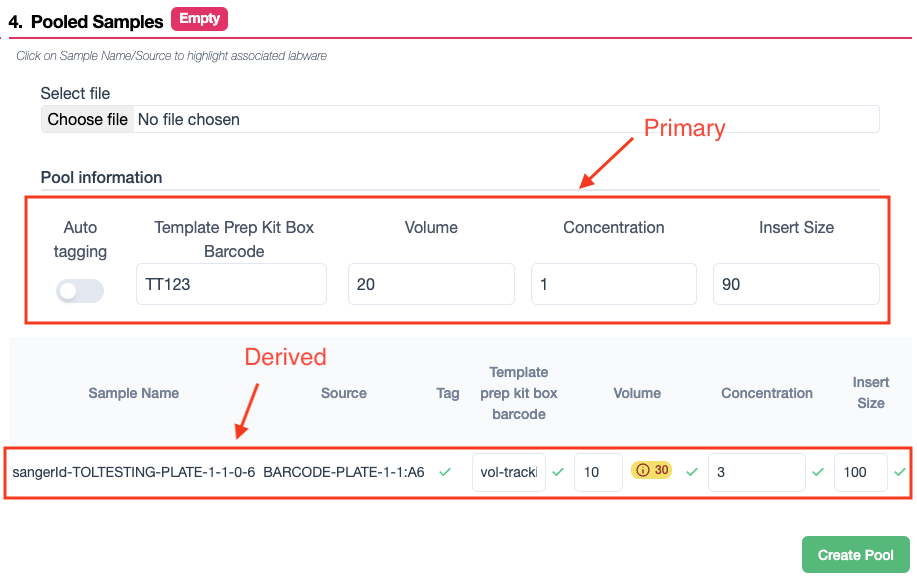

Pool creation with samples

Used volume of the poolAvailable volume of libraries in the pool

Note

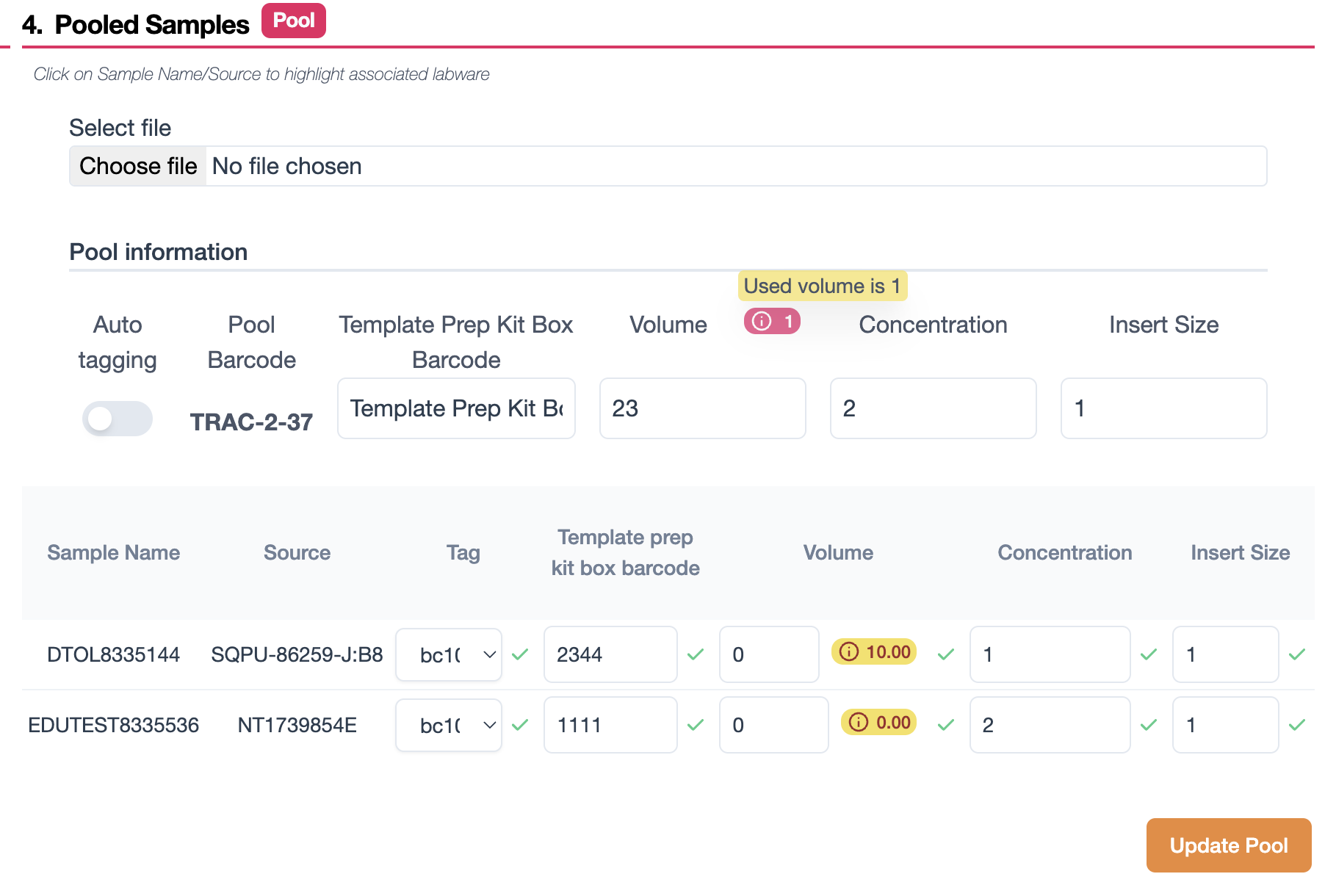

We are displaying the used volume of the pool as a badge (as shown in the figure below) and if the user enters a value less than the already-used volume an error prompt displayed in the page and the user would not be allowed to create/update the pool.

Pool creation with samples

Note

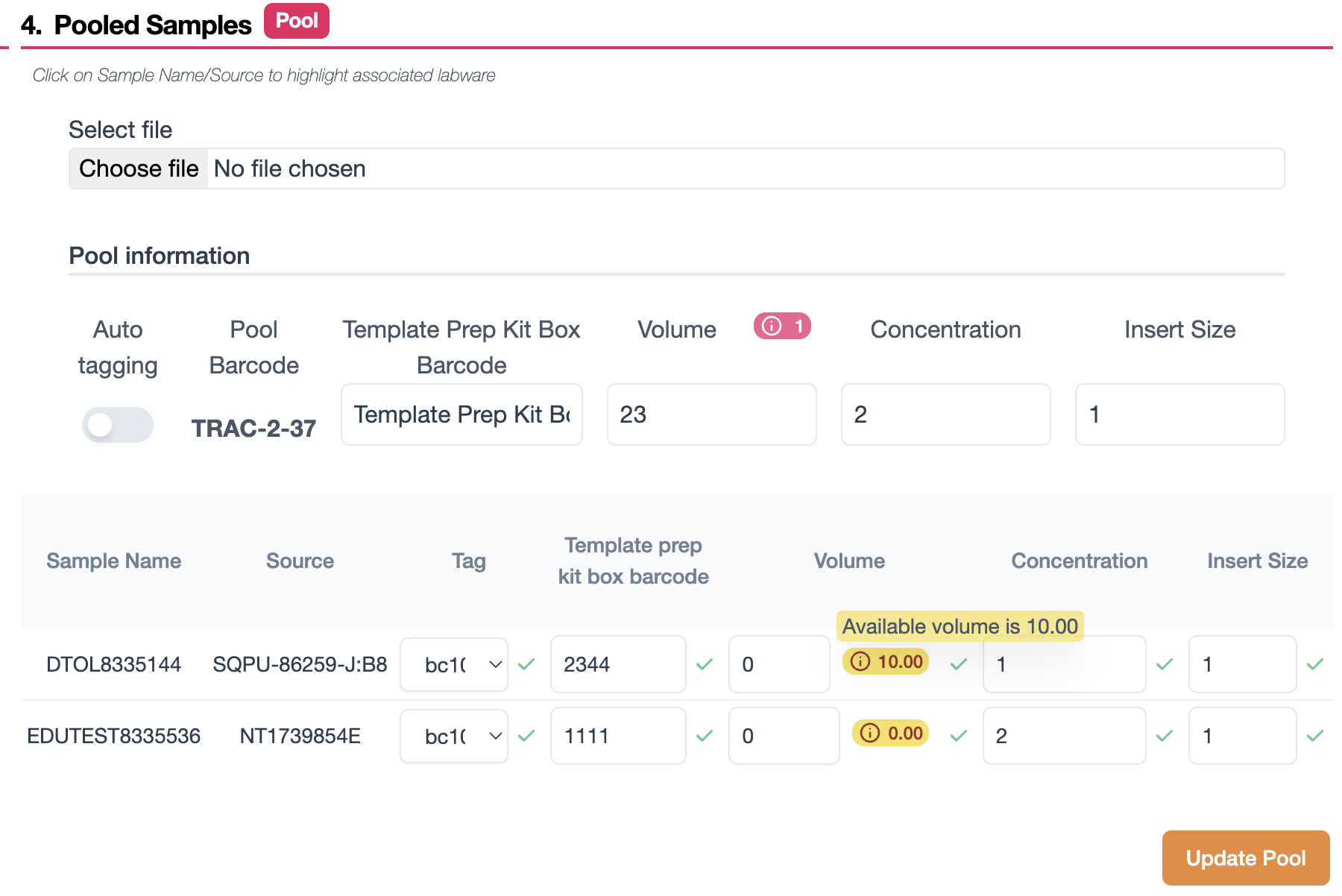

We are displaying the available volume of each library, if the user enters a value higher than the available volume there would an error prompt displayed in the page and the user would not be allowed to create/update the pool.

Pool creation with samples

The process diagram for the above use-case is depicted below.

Run

When creating a run, a primary aliquot is created with source_type as Pacbio::Well and a well can be created using multiple libraries as well as using multiple pools. Derived aliquots are created for each library or pool used in a run. We are publishing the following aliquots into the warehouse as part of run creation process:

1. Derived aliquot for each library used in the run.
2. Derived aliquot for each pool used in the run.
3. Derived aliquot for each library used in a pool for the run

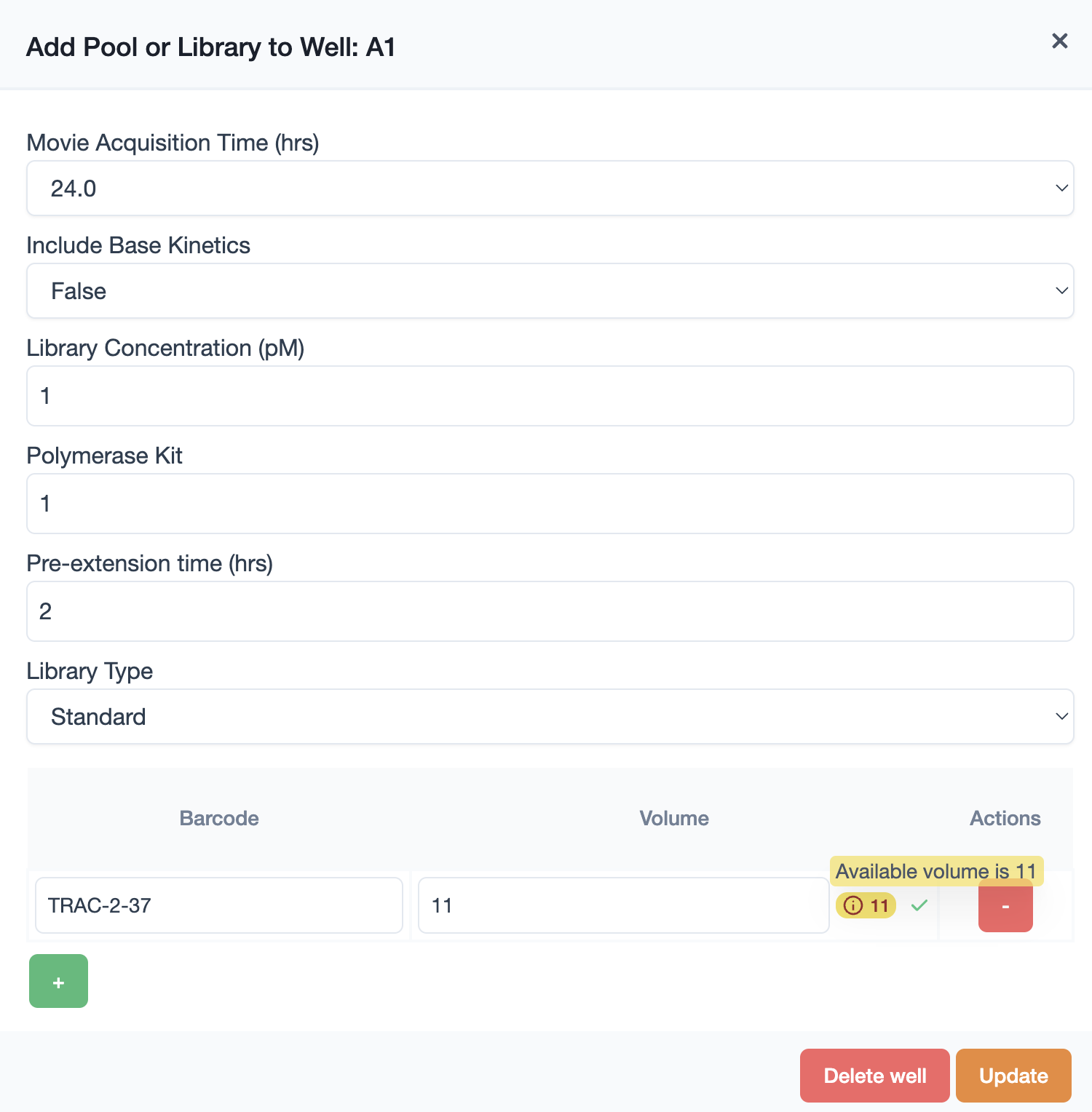

We are displaying the available volume of each library, if the user enters a value higher than the available volume there would an error prompt displayed in the page and the user would not be allowed to create/update the run.

Pool samples volume

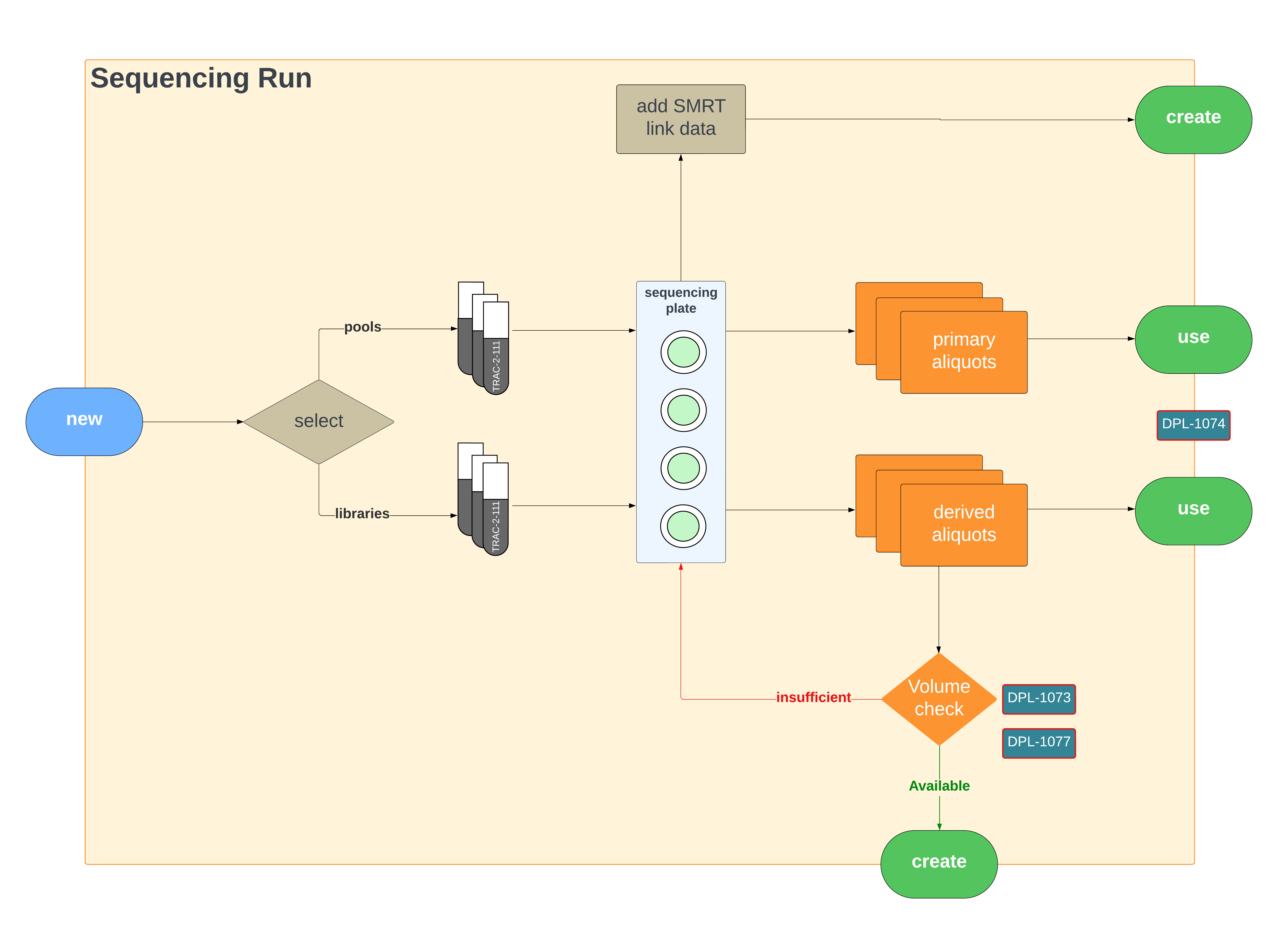

The process diagram for the above use-case is depicted below.

---

The Lucid chart Process Diagram for the end-to-end process is embedded below.
